The first step is to connect the ACR1251U RFID NFC reader:

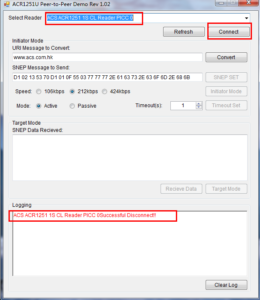

First, we need to open the ACR1251U Peer-to-Peer Demo Rev 1.02 tool, connect the reader, click Refresh to select the PICC port, put the NFC phone on it and click Connect to establish a connection. As shown in the figure:
The second step is to enter the data encoded into NFC NDEF information:
Enter the URL address in the URI Message to Convert box, click Convert, SNEP SET, Initiator Mode in sequence, and the phone will receive the sent URL address. As shown in the figure:
The third step is to view NFC phone information:

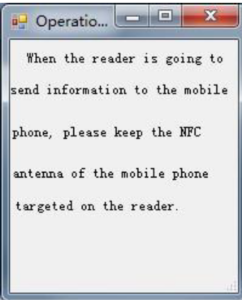

Turn on the NFC function of the phone and the phone is not in the locked screen state, click Initiator Mode, and the following prompt box will pop up. Before the prompt box is automatically closed (if it is closed, please click the button Initiator Mode again), put the phone on the reader, and the phone will receive and automatically open the corresponding URL. As shown in the figure:
