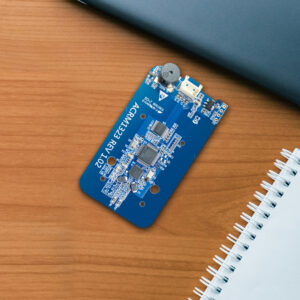

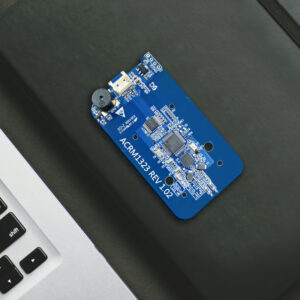

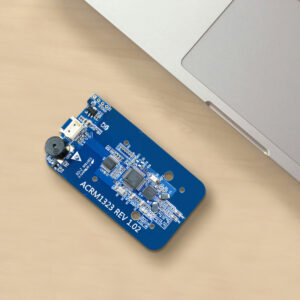

ACM1323S RS232 Contactless Reader Writer
ACM1323 is a smart card reader module based on 13.56MHz contactless technology. It adopts serial communication protocol and optionally supports RS232 interface or UARTTTL signal interface. It supports reading and writing Class A smart cards that comply with ISO144431 to Part 4, including CPU cards, MIFARE Classic, Mifare 1K/4K, Mifare Plus and DESFire. The ACM1323S is a true plug and play device that can be used without any drivers and is designed for rapid integration into embedded systems, suitable for a variety of application scenarios such as charging points, tablets, vending machines, public transportation, network access control, attendance and other integrated systems. It also supports firmware upgrades without the need for additional hardware modifications.
| Physical Characteristics | |
| Dimensions (mm) | 73.5 x40.0 x 4.5 |
| Weight (g) | 7.2 |
| RS232 Interface | |
| Connector Type | RS232 TTL |
| Power Source | From USB port |
| Cable Length | 1m, Detachable (Upon Request) |
| Contactless Smart Card Interface | |
| Standard | ISO 14443 Type A CPU card MIFARE Classic, Mifare 1K/4K, Mifare Plus and DESFire |
| Protocol | ISO 14443-4 Compliant Card, T=CL |
| MIFARE® Classic Card, T=CL | |
| Built-in Peripherals | |
| LED | 1 bi-color: Blue and Green |
| Other Features | |
| Other Features | Supported Card Types: |
| ISO 14443 Type A & B Parts 1-4, | |
| MIFARE Classic®, MIFARE DESFire®, MIFARE Ultralight®, MIFARE Plus® | |
| Firmware Upgrade | Supported |
| Certifications/Compliance | |
| Certifications/Compliance | Certifications: |
| IEC/EN 62368, CE, UKCA, FCC, VCCI, RoHS, REACH, WEEE, Microsoft® WHQL | |
| Compliance: | |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows®, Linux®, macOS, Android™ |
