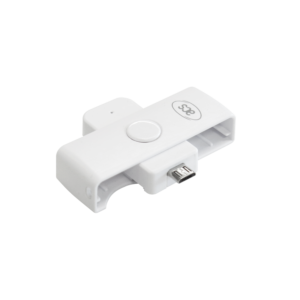

ACR39U-ND PocketMate II (Micro-USB) Smart Card Reader

The ACR39 Pocketmate II, endowed with a Micro-USB connector, ingeniously evolves into a full-sized contact Smart Card Reader with a simple swivel action. Compact enough to fit on a keychain, this device stands ready to support sophisticated smart card applications with efficiency.This portable reader skillfully accommodates smart cards conforming to ISO 7816 Class A, B, and C (5 V, 3 V, and 1.8 V), along with microprocessor cards operating on both T=0 and T=1 protocols. Its versatility extends to an array of memory cards, including those utilized by the Department of Defense for Common Access (CAC) and SIPRNET. The ACR39U PocketMate II thrives in various scenarios, including Personal Identity Verification, access controls, digital signatures, and secure online transactions.The Micro-USB variant ensures the ACR39U Pocketmate II retains all the renowned features of the ACR39U series, while also providing reverse compatibility and ease of orientation. Well-suited to desktop and mobile integrations, its drivers harmonize with a multitude of operating systems like Windows®, Linux®, Solaris, and Mac OS®. Additionally, the ACR39U PocketMate II has expanded its utility to Android™ devices running version 3.1 or higher.

• USB 2.0 Full Speed Interface

• USB Micro-USB Connector

• Plug and Play – CCID support brings utmost mobility

• Swivel Motion Design

• Smart Card Reader:

  • Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards

  • Supports CAC

  • Supports SIPRNET Card

  • Supports J-LIS Card

  • Supports Mykad Card

  • Supports microprocessor cards with T=0 or T=1 protocol

  • Supports memory cards

  • Supports PPS (Protocol and Parameters Selection)

  • Features Short-Circuit Protection

• Application Programming Interface:

  • Supports PC/SC

  • Supports CT-API CT-API (through wrapper on top of PC/SC)

• Supports Android™ 3.1 and later

• Physical Characteristics
  Dimensions (mm)	58.0 mm (L) x 20.0 mm (W) x 13.7 mm (H)
  Weight (g)	9.7 g
  USB Interface
  Protocol	USB CCID
  Connector Type	Micro-USB
  Power Source	From USB port
  Speed	USB Full Speed (12 Mbps)
  Contact Smart Card Interface
  Number of Slots	1 Full-sized Card Slot
  Standard	ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)
  Protocol	T=0; T=1; Memory Card Support
  Others	CAC, PIV, SIPRNET, J-LIS Smart Cards
  Certifications/Compliance
  Certifications/Compliance	EN 60950/IEC 60950
  	ISO 7816
  	USB Full Speed
  	EMV™ Level 1 (Contact)
  	PC/SC
  	CCID
  	TAA (USA)
  	VCCI (Japan)
  	J-LIS (Japan)
  	PBOC (China)
  	CE
  	FCC
  	WEEE
  	RoHS 2
  	REACH
  	Microsoft® WHQL
  Device Driver Operating System Support
  Device Driver Operating System Support	Windows®
  	Linux®
  	MAC OS®
  	Solaris
  	Android™ 3.1 and later
